Description

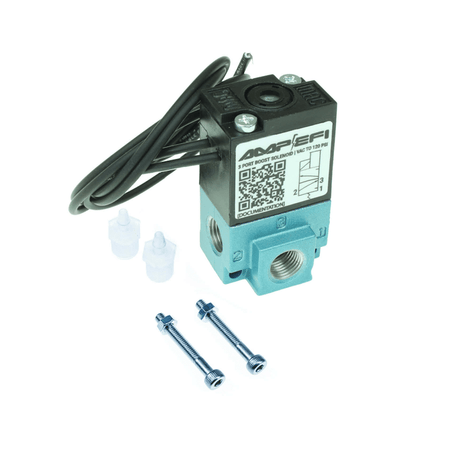

ms3 gold box boost control Electronic Boost Control (EBC) Solenoid Kit – DIYAutoTuneEnhance your boost control with our high performance electronic boost control solenoid, compatible with MS3Pro, MS3X, MSPNP Pro, and other DIY Style MegaSquirt EMS systems (with the appropriate mods). This solenoid adjusts boost pressure to your turbo wastegate, offering precise control and reliability. Features: Compatibility: Works with MS3Pro, MS3X, MSPNP, DIYPNP, and other electronic boost controllers Frequency: Operates at 19. 5 40 Hz Pressure
Enhance your boost control with our high-performance electronic boost control solenoid, compatible with MS3Pro, MS3X, MSPNP-Pro, and other DIY Style MegaSquirt EMS systems (with the appropriate mods). This solenoid adjusts boost pressure to your turbo wastegate, offering precise control and reliability.
Features:
- Compatibility: Works with MS3Pro, MS3X, MSPNP, DIYPNP, and other electronic boost controllers
- Frequency: Operates at 19.5-40 Hz
- Pressure Range: Maximum pressure of 125 psi, suitable for high-pressure setups
- Usage: ideal for use with Single Port or Dual Port Wastegates
- Replacement: Direct wire-in replacement for the discontinued GM EBC Solenoid. Lower duty cycle may be needed; reduce by 30% when replacing a GM valve and adjust as necessary.
- Connections: Includes 1/8″ barb fittings and mounting hardware. Ports are 1/8″ NPT pipe thread for alternative connections
- Wiring: Connect one wire to a 12V source and the other to the ECU. The valve wiring is not polarized, so either wire can be used for 12V Power.
Specifications:
- Maximum Pressure: 125 psi
- Operating Frequency: 19.5-40 Hz
- Material: Durable construction for performance applications
- Temperature: Avoid mounting the valve in direct extreme heat; keep maximum valve temperatures under 122°F
Installation:
Note: Do not plug the disconnected port; it must be vented to the atmosphere.
Wiring
- One wire connects to a 12V Power
- Other wire connects to the ECU
- Note: wiring is not polarized, so it does not matter which wire goes to 12V Power
Included in Box:
- Electronic Boost Control Solenoid
- 1/8″ Barb Fittings
- Mounting Hardware
