Description

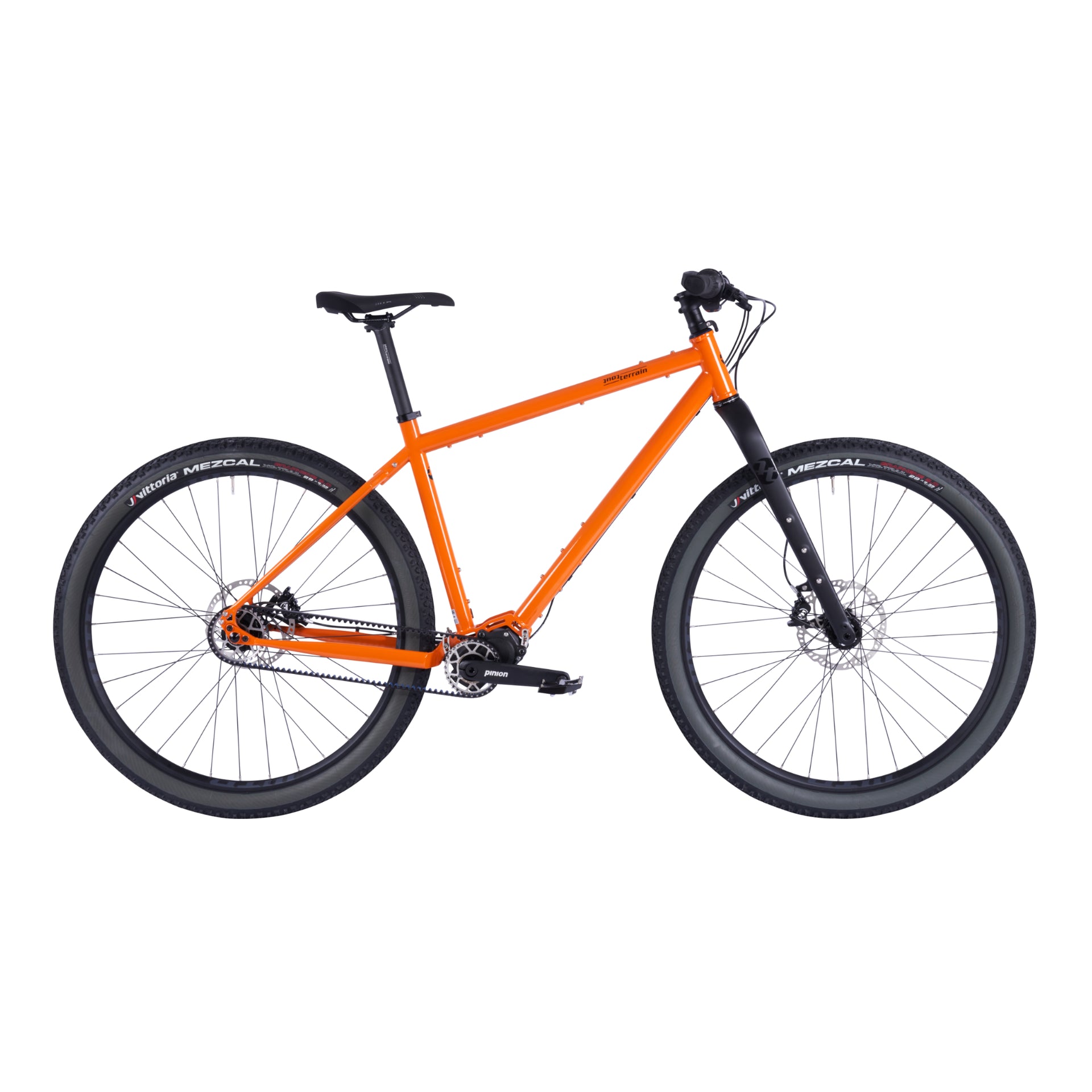

29 mountainbike Outback Xplore II 29The Outback Xplore II 29 is the ultimate steel frame bikepacking and off road adventure bike, engineered by Tout Terrain for rugged, long distance exploration. Maintenance Free Drivetrain: At its core is the robust, tried and tested Pinion specific steel frame paired with a low maintenance Pinion C1. 12 Gearbox and Gates Carbon Drive Belt. This system delivers reliable, maintenance free shifting across a 600% range in any conditions. Ready for Any
The Outback Xplore II 29 is the ultimate steel frame bikepacking and off-road adventure bike, engineered by Tout Terrain for rugged, long-distance exploration.
Maintenance-Free Drivetrain: At its core is the robust, tried-and-tested Pinion-specific steel frame paired with a low-maintenance Pinion C1.12 Gearbox and Gates Carbon Drive Belt. This system delivers reliable, maintenance-free shifting across a 600% range in any conditions.
Ready for Any Terrain: This adventure touring/bikepacking bike is built around 29" wheels, offering clearance for up to 2.6” tires (stock tires are Vittoria Mezcal 29x2.35). The stable, comfortable geometry prioritizes control and stability for loaded off-road touring and bikepacking.
Customizable Carrying Capacity: The frame is equipped with ample mounting points, including additional bosses on the top and down tubes, allowing for both a modern bikepacking setup or a traditional touring rack.
Customize Your Ride: Complete your dream build by choosing between the rigid Tout Terrain Adventure Carbon Fork or Rockshox suspension fork option.
The Outback Xplore II 29 is available in sizes S, M, L, and XL.
Available sizes: S, M, L, XL
Color: Pure orange RAL 2004 | black decals
Fork: Tout Terrain Adventure Fork II | Carbon fork
Axle dimensions: Front: 15/110mm thru-axle | Rear: 12/142mm thru-axle
Brake mount: Front: PM 180-203mm | Rear: PM 160-180mm
Drivetrain: Pinion C1.12 Gearbox | Gates Carbon Drive Belt
Crankset: Pinion Boost Forged | CDX 32T Sprocket | 170mm
Rear Sprocket: Gates Carbon Drive CDX Centertrack | 30T
Gearing: 32/30 600%
Bottom bracket: Pinion
Belt: Gates Carbon Drive CDX 115T
Belt Tensioning System Tout Terrain TBA III (pivotable for Pinion)
Gear lever: Pinion twist shifter
Steering stop: Tout Terrain Ergo-Stop II
Headset: Cane Creek 40 | ZS44 / EC44
Stem: Tout Terrain | 70mm | +/- 6°
Handlebar: Tout Terrain Ergo 760
Brake: Magura MT5
Disc rotors: Magura 180mm/180mm
Grips: Tout Terrain Ergo Grips
Wheel size 29"
Front hub: Tout Terrain EX-F1 Boost| Centerlock rotor interface
Rear hub: Tout Terrain EX-R2 - 1S | Centerlock rotor interface
Tires: Vittoria Mezcal 29x2.35
Rims: WTB KOM tough i25
Pedals: -
Seat post: Tout Terrain SP1-Zero | 30.9 mm
Saddle: WTB Volt medium
| S | M | L | XL | ||
| A | Seat Tube(mm) | 420 | 470 | 500 | 530 |
| A1 | Seat Tube (mm) | 380 | 410 | 440 | 470 |
| B | Top Tube (mm) | 575 | 595 | 615 | 640 |
| C | Head Tube (mm) | 120 | 125 | 130 | 135 |
| D | Chain Stay (mm) | 462 | 462 | 462 | 462 |
| E | Wheelbase (mm) | 1132 | 1153 | 1173 | 1199 |
| F | Bottom Bracket Drop (mm) | 65 | 65 | 65 | 65 |
| G | Head Tube Angle(*) | 68 | 68 | 68 | 68 |
| H | Seat Tube Angle(*) | 74 | 74 | 74 | 74 |
| I | STACK (mm) | 625 | 629 | 634 | 639 |
| J | REACH (mm) | 392 | 412 | 431 | 455 |
| K | Standover (mm) | 792 | 817 | 826 | 848 |
| L | Axle to Crown (mm) | 495 | 495 | 495 | 495 |
| M | Fork Offset(mm) | 51 | 51 | 51 | 51 |
