Description

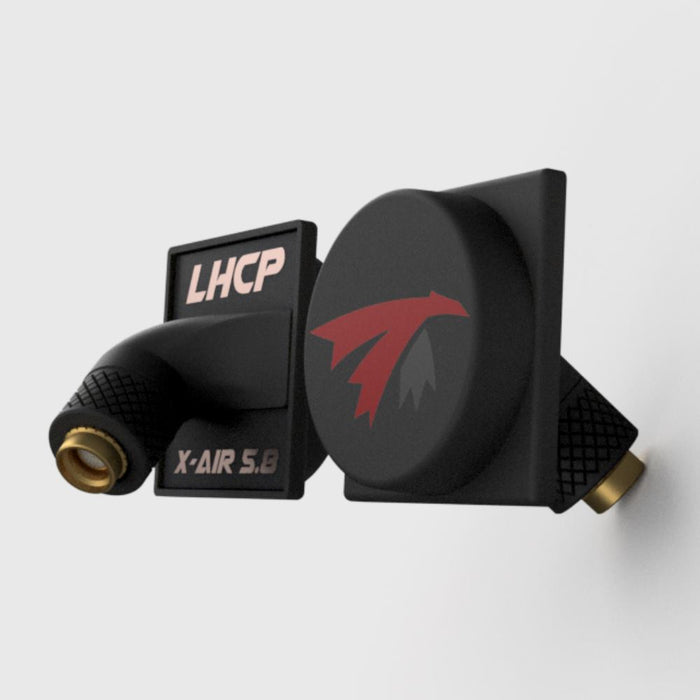

avatar goggles x TrueRC X-AIR MK II 5.8GHz Patch Antenna Pair for Walksnail Avatar HD G — PyrodroneOur high efficiency X AIR MK II with direct angled RP SMA connectors for installing on the Walksnail avatar HD goggles X. Simply screw on the custom angled RP SMA connectors on the top ports of the goggles. Great 13dBic gain combined with a healthy flyable beam width of 150deg, yield an amazing long range performances. Fill the remaining ports with singularity stubby and you got the antennas full house. Check out all our Walksnail Products, LHCP
Our high efficiency X-AIR MK II with direct angled RP-SMA connectors for installing on the Walksnail avatar HD goggles X. Simply screw on the custom angled RP-SMA connectors on the top ports of the goggles. Great 13dBic gain combined with a healthy flyable beam width of 150deg, yield an amazing long range performances. Fill the remaining ports with singularity stubby and you got the antennas full house.
Check out all our Walksnail Products, LHCP Antennas and the rest of our TrueRC Products!
Custom made RP-SMA connectors, direct fit for your goggles.
As with all other components of X-AIR antennas, the custom RP-SMA connector is made to fit your Walksnail avatar HD goggles X without adapter and make sure they end up facing forward with little uptilt for good measure.
Paired them with our ever popular singularity stubby.
A pair of singularity stubby antennas can be included as a combo for the ultimate in performances and convenience!
Features:
- Circularly Polarized
- Mount direct on Walksnail avatar HD goggles X
- Compact low-profile design, easy to store and transport
- High 10 dBic for long range and signal penetration
- Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
- Super wide 120 degree beam
- Custom RP-SMA connectors with compound angle to have the X-air antenna face forward
Specifications:
- Bandwidth: 5.1GHz-6.7GHz
- Gain: 9.5-10.5 dBic
- Polarization: RHCP or LHCP
- Beam-width*: 120deg
- Beam-width @-3dB**: 68deg.
- Connector: RP-SMA male
-
Dimension: 34 x 34 x 34mm
*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.
Package Includes:
- Two X-air MKII antennas.
