Next-Gen Z-Style Rooftop Tent with Maximum Space and Headroom

The 23Zero Kabari Z is a next-generation aluminum clamshell roof tent featuring innovative Z-lift geometry, massive headroom, and four-way access for serious overland travel.

The 23Zero Kabari Z clamshell rooftop tent represents a new evolution in hard shell roof tent design, combining innovative engineering with uncompromising comfort and durability. The z lift rooftop tent mechanism is one of the standout features that makes this tent model unique.

Developed collaboratively by 23Zero Australia and 23Zero USA, this rooftop tent, Kabari Z clamshell model, is purpose-built for overlanders and adventurers who want more internal space, greater headroom, and true versatility in demanding environments.

At the core of the Kabari Z clamshell rooftop tent is its revolutionary Z-style lift mechanism. This multi-hinge, gas-assisted system allows the tent to be used like a traditional clamshell or fully deployed into a true Z-lift configuration. The result is exceptional internal volume, genuine 360-degree views, four-way access, and a stable, wind-resistant structure that performs confidently in a wide range of conditions.

The laser-welded aluminum shell is constructed from 2mm aluminum with smooth radius corners to reduce fatigue points and improve long-term durability. Beneath it, an aluminum honeycomb base with a PVDF anti-oxidation coating delivers outstanding strength. In fact, the clamshell rooftop tent supports a static load capacity over 1,000 pounds. Despite its robust construction, the Kabari Z maintains a low-profile, aerodynamic shape when closed.

Inside, comfort takes center stage. The self-inflating mattress allows you to fine-tune firmness to your preference, while a 10mm insulated underlay helps manage condensation and heat loss. ECO13B fabric with Light Suppression Technology (LST) blocks heat and sunlight, keeping the sleeping area darker and cooler for better rest. Oversized entry awnings, triangular mesh windows, and 125 gsm insect screens promote excellent airflow while maintaining weather protection.

Integrated power and lighting systems add convenience, including dimmable white and amber LED lighting, USB-A, USB-C, and a 12V socket, along with an external Anderson plug for power integration. With ample internal storage, the ability to stow bedding when closed, and included accessories, the Kabari Z is more than a roof tent—it’s a fully engineered off-grid sleeping system. This clamshell rooftop tent is made better and built for more.

Features

Z Lift Rooftop Tent Key Features

Z-Lift Deployment System: Gas-assisted hinges provide ultra-fast setup, 360-degree views, four-way access, and superior headroom in the clamshell rooftop tent.

Spacious Interior: Internal dimensions of 48″ W x 78″ L x up to 58″ H create a roomy, comfortable living space.

Premium Aluminum Construction: Laser-welded aluminum shell and honeycomb base deliver strength and longevity.

ECO13B + LST: ECO13B fabric reduces heat and light for cooler, darker sleep conditions.

All-Weather Performance: Oversized awnings, mesh screens, and zippered panels balance airflow and protection.

Integrated Power & Lighting: A dimmable LED light is included for interior illumination. Inside the tent, a built-in power hub features a voltage meter, USB-A, USB-C, and 12V outlets for versatile charging. The hub is powered by an externally mounted Anderson SB-50 plug located underneath the tent. (Power source and connecting cable to the SB-50 plug are not included.)

Self-Inflating Mattress System: Adjustable firmness with a 2.4″ mattress and an insulated underlay.

Storage Ready: Dual roof and side pockets plus space to store bedding when closed.

Cooler/Heater Port: Integrate heating or cooling with two ports (5” diameter) and zippered wiring access points.

Complete Accessory Package: Includes a ladder with a storage bag, a boot bag, and an additional gear storage bag.

Low-Profile Efficiency: Aerodynamic closed design minimizes wind drag while maximizing usable space when open in the clamshell rooftop tent.

Specifications

Specifications

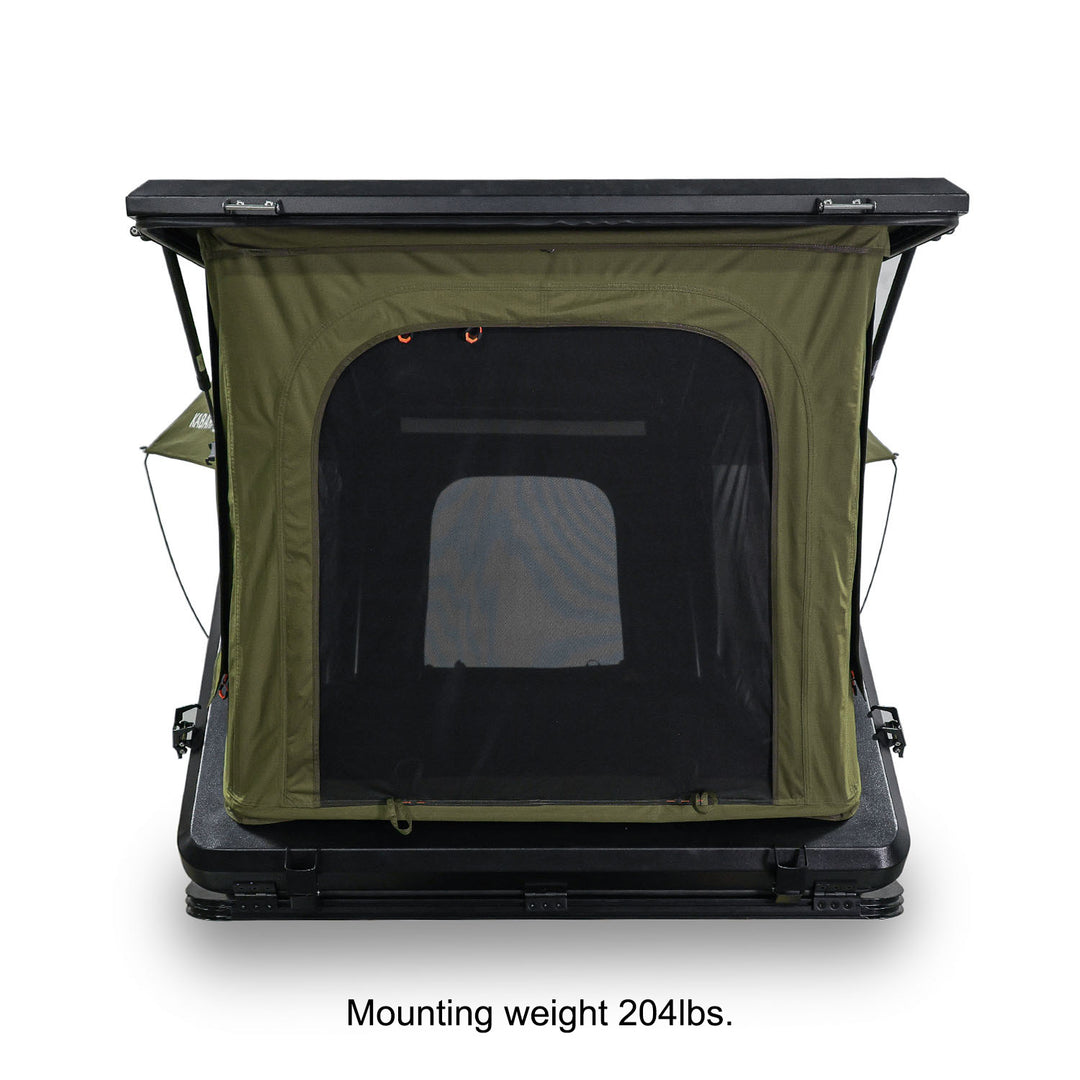

Mounting Weight: 204 lb

Sleeping Footprint: 48” W x 79.5” L

Sleeps: 2 Adults

Seasons: 4 Season

Internal Dimensions: 48” W x 78” L x up to 58” H

Mounting Footprint: 55.25” W x 86.625” L x 9.5” H (including mounting rails)

Rear Door / Window: 23” W x 28” L

Side Door / Windows: 48” W x 36” L

Front Door / Window: 32” W x 36” L (This door does not come with preinstalled ladder mounts)

Moon Roof: 32” W x 36” L

Triangular Side Windows: 32” W x 17” L

Inside Gear Storage: Two (2) side storage pockets approximately 9” W x 5” L and a three-pocket gear loft measuring 39” W x 12” L, including a clear table section (13” x 9”) and two side gear pockets

Shoe Bag: 18.75” W x 19” L with a large shoe pocket 18” W x 18” L x 6” D, two 8” x 8” mesh pockets, and one zippered pocket 16” x 7”

Gear Storage Bag: 16” W x 22” L with four mesh pockets

What's Included

Four (4) mounting plates

Eight (8) hardware mounting sets (slider, bolt, washer, nylock nut) – M8 1.25 x 2.5” (nuts 13mm)

13mm ratcheting wrench

Allen wrench

Four (4) rail end caps

Handle with hardware

Patch kit

Spare hardware kit

All hardware stored in a zippered bag

Ladder with bag (24.5” W x 31” L x 4” D)

One (1) 44” LED light with USB switch and cable

Four (5) rain fly poles (45” L) with storage bag

Two (2) roof cross bars (2” x 51” x 0.50”)

Preinstalled: Six (6) ladder/bag brackets, keder track for shoe and gear bags, ten (10) closing latches, three (3) main hinges, and one hinge for the upper roof

Note: Before you install a wedge shell rooftop tent, it’s critical to understand these key points:

Verify your vehicle’s maximum roof load capacity as specified by the manufacturer.

Consult with the rack manufacturer or retailer to check the load limit of your roof rack or truck bed rack, especially for off-road use.

Understand that the maximum allowable weight you can safely add to your vehicle’s roof or cargo area may vary depending on the make and model of the vehicle, as well as any aftermarket additions such as roof racks or bars. Opt for a clamshell rooftop tent that matches these specifications for optimal safety and convenience.
