Description

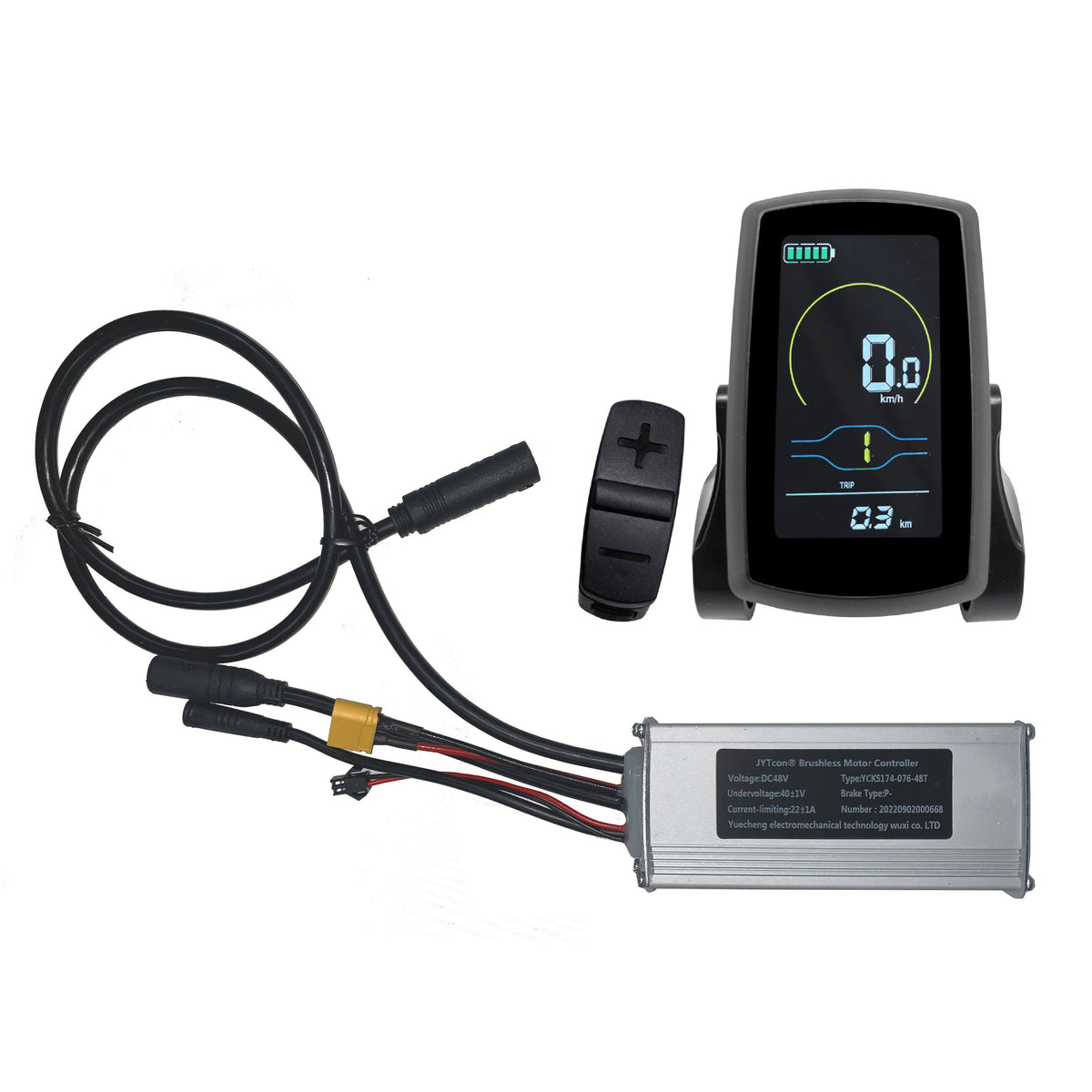

yolin e-bike display Yolin YL80C E-Bike Colourful Display + JYTcon Brushless Motor Controll – TDRMOTODisplay Specification: This intelligent LCD Display is the perfect replacement part for eBikes already equipped with the YL 80C. YL80C meter provides a variety of functions to meet your riding needs such as Battery display, Motor power indication, Assistance gear adjustment and indication, Speed display (including real time speed, maximum speed, and average speed) Color: Black Material: ABS Plastic Connector Type: JULET waterproof 5Pin 52V 48V power
Display Specification:
- This intelligent LCD Display is the perfect replacement part for eBikes already equipped with the YL-80C. YL80C meter provides a variety of functions to meet your riding needs such as Battery display, Motor power indication, Assistance gear adjustment and indication, Speed display (including real-time speed, maximum speed, and average speed)
- Color: Black
- Material: ABS Plastic
- Connector Type: JULET waterproof 5Pin
- 52V/48V power supply
- Rated working current 15mA
- Maximum working current 30mA
- Leakage current at power-off <1uA
- Working current at the supply controller end 50mA
- Working temperature -20~60
Controller Specification:
- Voltage: DC48V
- Undervoltage: 40±1V
- Current-limiting: 22±1A
- Type: YCKS174-076-48T
- Brake Type: P-
- Controller Dimension: 115 * 50 * 30mm
- Weight: 0.3kg
Package Contents:
- 1 x Ebike Display Meter
- 1 x motor controller
Notes:
Please check your original device, size before purchase to make sure this meets your need.
