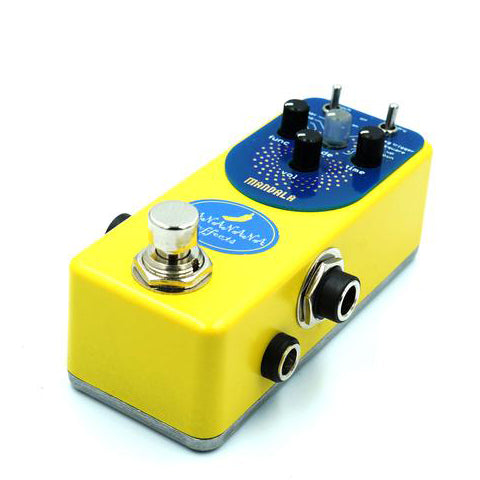

glitch pedal Bananana Mandala Glitch – Motor City Guitar

glitch pedal Bananana Mandala Glitch – Motor City GuitarA first class glitch pedal made exclusively for creating radical glitch effects. A multi functional glitch pedal equipped with eight modes, including multi speed playback, pitch shift, square wave sound, and a delay that automatically samples and loops the previous phrase when triggered by a break in the input sound. 8 MODES: Repeat When switched on, repeats the last sound received over and over. Select from playback speeds of 1x and 2x. Random

A first-class glitch pedal made exclusively for creating radical glitch effects.

A multi-functional glitch pedal equipped with eight modes, including multi-speed playback, pitch shift, square wave sound, and a delay that automatically samples and loops the previous phrase when triggered by a break in the input sound.

8 MODES:

Repeat
When switched on, repeats the last sound received over and over. Select from playback speeds of 1x and 2x.

Random
Repeats the last sound received over and over for a different random period each time it is switched on.
Select from playback speeds of 1x and 2x. In those mode, the “Time” knob can be used to set the maximum time for the randomly-determined duration.

Reverse
When switched on, repeats the last sound received over and over in reverse.
Select from playback speeds of ½x, 1x and 2x.

Trigger
Automatically loops the last sampled phrase when triggered by a break in the input sound.
Select from playback speeds of 1x and 2x.

Square Trigger
Samples the input sound after transforming it into a square wave sound, then automatically loops the last sampled phrase when triggered by a break in the input sound.
The square wave sound can be mixed between the input octave and one octave lower, allowing for the creation of a wide range of sounds.

Square
When switched on, transforms the last sound received into a square wave sound and repeats it over and over.
The square wave sound can be mixed between the input octave and one octave lower, allowing for the creation of a wide range of sounds.

Up
When switched on, repeats the last received sound over and over, increasing the pitch each time it repeats.
The pitch shift is chromatic, and can be set from +1 to +12.

Down
When switched on, repeats the last received sound over and over, decreasing the pitch each time it repeats.
The pitch shift is chromatic, and can be set from -1 to -12.

Controls:

Unlatch ON/OFF
Latch / Unlatch toggle

Kill Dry ON/OFF
Mutes the dry tone.

Mode
• Repeat
• Random
• Reverse
• Trigger
• Square Trigger
• Square
• Up
• Down

Func
Adjusts the parameters of each modes

Repeat / Random / Trigger
Playing Speed(x1 / x2)

Reverse
Playing Speed(x-½, x-1, x-2)

Square Trigger / Square
Octave Mix
(ccw: Same octave as the input / cw: One octave lower)

Time
Adjusts the repeat time.

Vol
Level control for the wet signal.


SPECIFICATIONS
DIMENSIONS: 2 x 3.7 x 1.9 inches (WxDxH)
WEIGHT: 7.1oz
BYPASS: BUFFERED BYPASS
INPUT IMPEDANCE: 1Mohm
POWER SOURCE: 9V DC(Center negative)
CURRENT DRAW: 60mA
