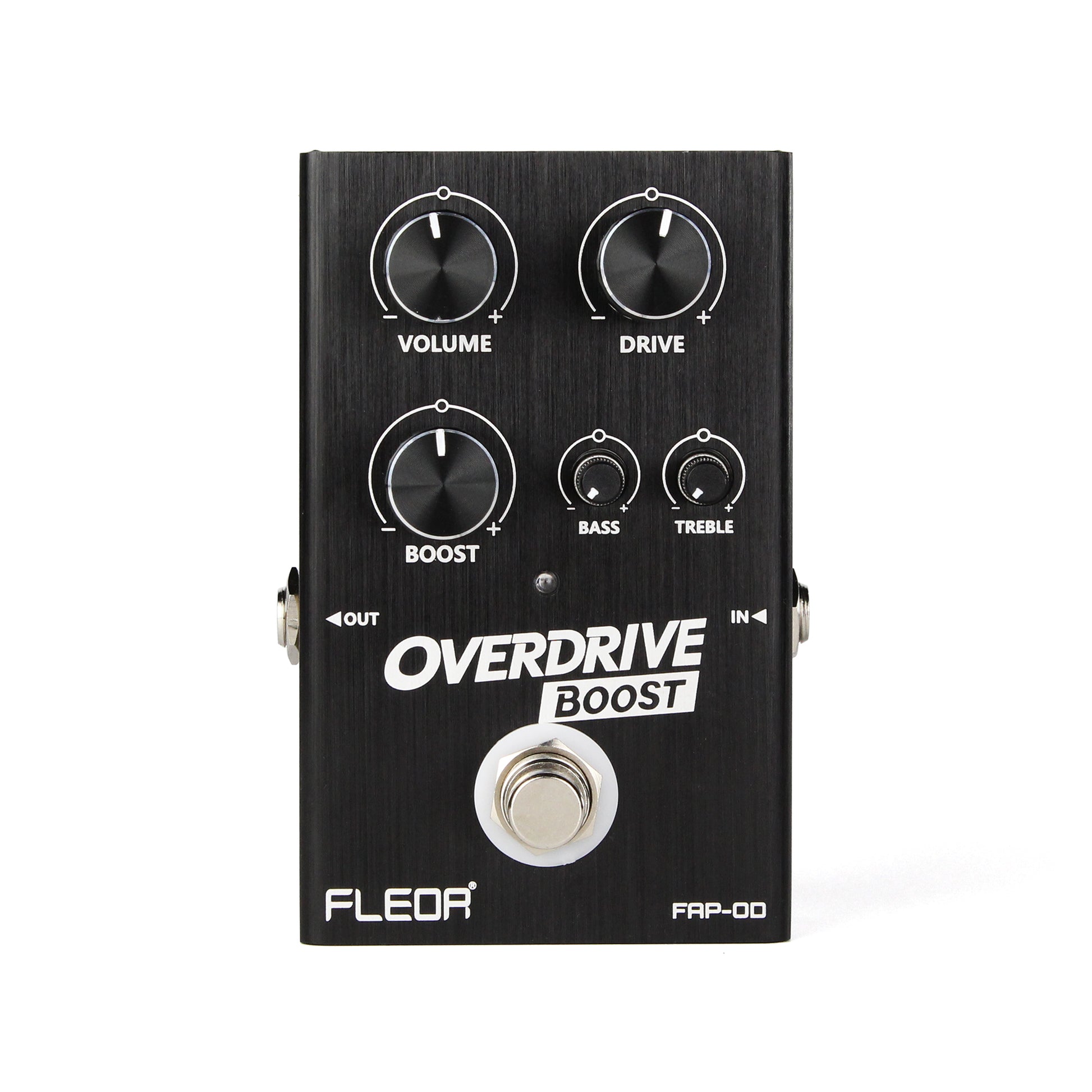

boost and overdrive pedal FLEOR FAP-OD Analog-Voiced Overdrive + Boost Pedal

     The FLEOR FAP-OD is an analog-voiced overdrive & boost pedal
     combining a warm, harmonically rich overdrive circuit with an
     independent adjustable BOOST gain stage.
     Designed with a symmetrical clipping overdrive architecture,
     enhanced by a TL072 JFET op-amp, the FAP-OD delivers an
     expressive, dynamic response with strong note clarity.

     Whether used as a transparent clean boost, a mid-gain overdrive,
     or a front-end push for tube amplifiers and distortion pedals,
     the FAP-OD provides versatility, musicality, and rich tonal shaping.

   Specifications

   • Circuit Type: Symmetrical clipping overdrive +
     independent BOOST amplification
   • Op-Amp: TL072 JFET-input audio op-amp
   • Input Impedance: High input impedance
     (protects original dynamics & clarity)
   • Output Impedance: Low output impedance
     (stable drive for downstream units)
   • Bypass: TRUE BYPASS (pure analog signal path; signal fully
     bypasses the circuitry when off)
   • Power: 9V DC center-negative, standard pedal power supply
   • Compatible Instruments:
      Electric Guitar
      Electric Bass
      Synthesizer
      Digital Piano
      Other line-level instruments
   • Construction:
      Metal enclosure
      Mechanical footswitch

    Key Features

    • Symmetrical Overdrive + Independent Adjustable BOOST
      Classic overdrive foundation with an extended gain range and
      extra pushing power.
    • TL072 JFET Op-Amp
      Low distortion, high dynamics, fast transient response,
      and pronounced analog character.
    • 5-Knob Tone Shaping System
      VOLUME — Output level
      DRIVE — Overdrive gain and saturation
      TREBLE — High-frequency control
      BASS — Low-frequency control
      BOOST — Independent gain boost
      Strong tone-sculpting ability beyond traditional
      single-tone-knob TS-style circuits.
    • TRUE BYPASS (Pure Analog Signal Path)
      When switched off, the signal fully bypasses the circuitry,
      ensuring no coloration or tone loss.
    • High Input / Low Output Impedance
      Excellent compatibility with various pickups, effect chains,
      amplifiers, and audio interfaces.
    • Rugged Metal Enclosure
      Durable structure and mechanical footswitch for rehearsal
      and stage reliability.
    • Low Power Consumption
      Stable operation with standard 9V DC center-negative
      power supplies.

    Tone Description

      The FAP-OD is not just an overdrive
      —it is a two-stage gain sculpting system.

    • Overdrive Section
       Its symmetrical clipping design produces a warm, organic,
       harmonically rich overdrive tone with natural compression
       and fine-grain distortion.
       Strong midrange presence
       Tight low end
       Smooth highs
       Musical, dynamic response
    • Independent BOOST Stage
       The BOOST provides additional gain and dynamic headroom:
       Push tube amplifiers into natural breakup
       Strengthen sustain
       Tighten mids for solos
       Add harmonic density to distortion pedals
    • Tonal Versatility
     • Low DRIVE + High BOOST:
       Transparent clean boost, ideal for pushing amps
     • Medium DRIVE + Medium BOOST:
       Warm, thick, responsive overdrive
     • High DRIVE + Low BOOST:
       Tight, focused rock lead tone
       The overall character is warm, tight, and dynamic—not
       the sharp or brittle type of digital distortion, but a musical,
       analog-voiced overdrive.

      Suitable Music Styles
    • Blues
    • Blues Rock
    • Classic Rock
    • Pop Rock
    • Progressive Rock
    • Indie Roce
    • Alternative / Soft Metal
    • Fusion

      What’s in the Box
    • FLEOR FAP-OD Overdrive Pedal ×1
    • User Manual ×1
    • Velcro ×1
    • Silicone Feet ×4
    • Color-Coding Label ×1
