Specialty Traders is an Authorized Phil Jones Bass Dealer!

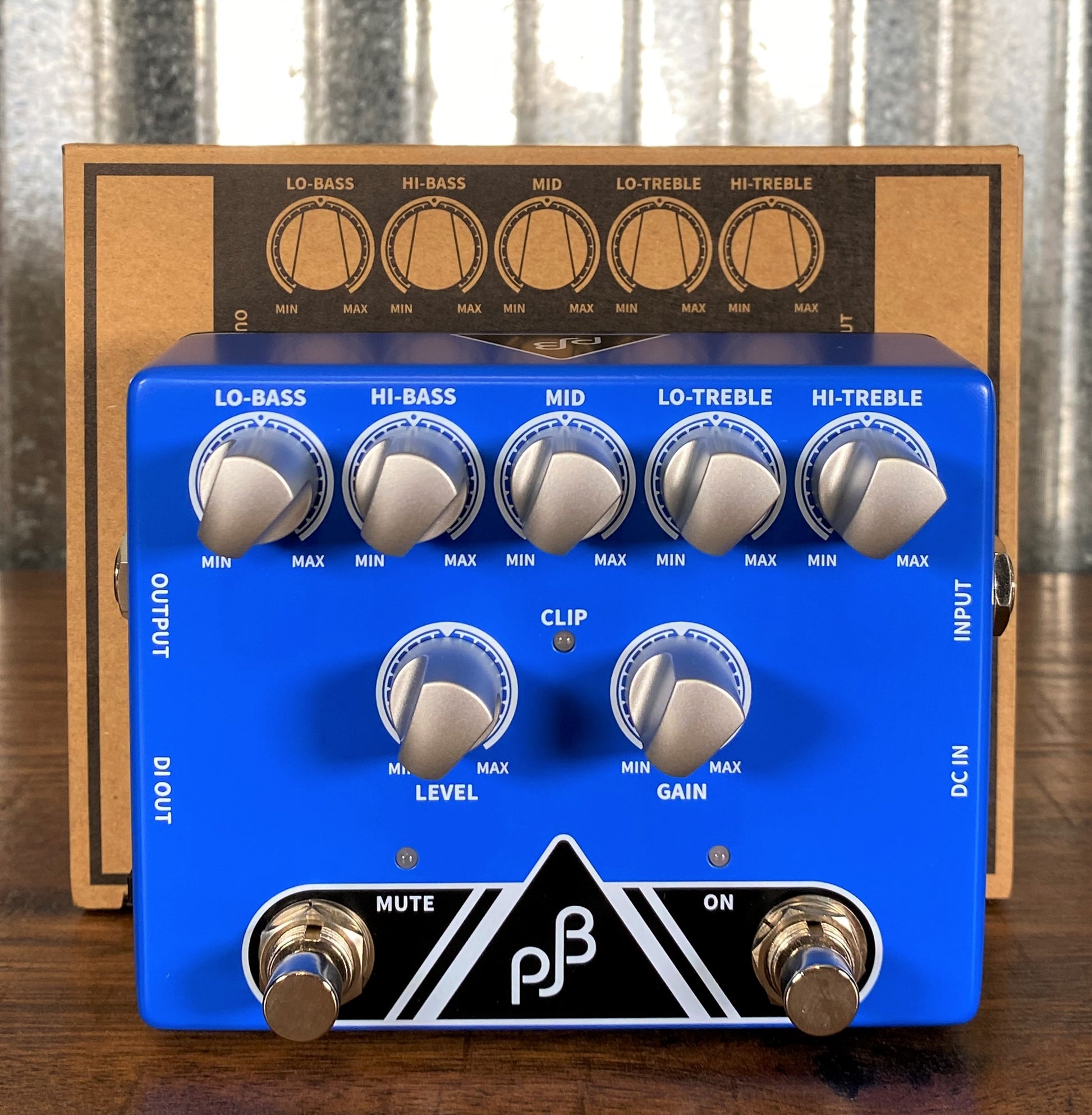

Phil Jones Bass PE-5 5 Band EQ Pre-Amp, Direct Box, & Signal Booster Effect Pedal

New

We strongly recommend using the proper power supply for any pedal. Daisy chain power supplies may not supply enough power when using multiple pedals or introduce noise into the chain. Consult the pedal manual when available for manufacturer recommended power specifications.

The PE-5 is a pedal designed for bass guitar and upright bass which incorporates a sophisticated 5 band EQ and also offers superior function as a Pre-Amp, Direct Box, and signal booster.

The PE-5 is engineered with a unique switchable input impedance which allows the pedal to match exactly to either a magnetic or piezo pickup. It achieves the full band spectrum for either pickup source. In addition it is a signal booster which compensates for low output pickups and will also provide ample drive for any amplifier. The input level and gain controls are designed to precisely match the pickup output to an amplifier.The line output is strong enough to use directly into a power amplifier or a powered speaker.

The 5-band EQ is a high precision equalizer which means that each boost or cut level is identical to each adjacent band. Plus the Q factor of each band is identical. This makes it far easier for the player to accomplish the tone that they are pursuing. These frequency bands were carefully chosen for the voice of a bass so that the user will be able to adjust the EQ rapidly to get the desired sound.

The DI output is of the highest audio quality obtainable providing a match to even the finest recording studio mixing consoles and live sound systems. It has extremely high signal to noise ratio and features a ground lift switch to eliminate the possibility of “Mains Hum”.

The PE5 can be powered by a standard 9-volt DC pedal adaptor or run on its own internal lithium-ion battery that is charged with a standard cell phone charger via its USB socket.

The two foot switches provide a mute function and a true bypass. The rugged housing is constructed of die cast aluminum alloy made to deliver years of service.

Features:
Input Impedance PieZo=4.7MO, MaGnetic =2M O, Maximum input before clipping – 4 Volts (peak to peak
Gain Range From -6 dB to +6 dB
EQ
LO -BASS: Level ±12 dB (Freq. 50Hz)
HI-BASS: Level ±15 dB (Freq. 160 Hz)
MID : Level ±15 dB (Freq. 630KHz)
LO-TREBLE: Level ±15 dB (Freq. 2.5 KHz)
HI-TREBLE: Level ±15 dB (Freq. 12 KHz)
Input Input-B(1/4”Phone)
Outputs
UNBALANCED 1/4” JACK
BALANCED DI OUT with transformer (GND switch)
Controls GAIN / LEVEL
Switches Bypass | MUTE | ON/OFF | PRE/POST
Power Requirement 9VDC : 1A from separate 9volt 1 amp (minimum) adaptor
Dimension (W x D x H) 120 x 95 x 37 mm
Weight 450 grams
