audax gravel bike Audax ALThe Audax AL is our lightweight aluminum Audax bike with a hydroformed, double butted frame and a full carbon fork. We have optimized the butting profiles to reduce weight, ovalized the top tube, and lowered the seat stays to increase compliance, allowing you to ride longer. The frame and fork feature fender mounts and a variety of attachment points to be quick and light on the go. The 11 speed drivetrain from Microshift with a 40 tooth chainring, an

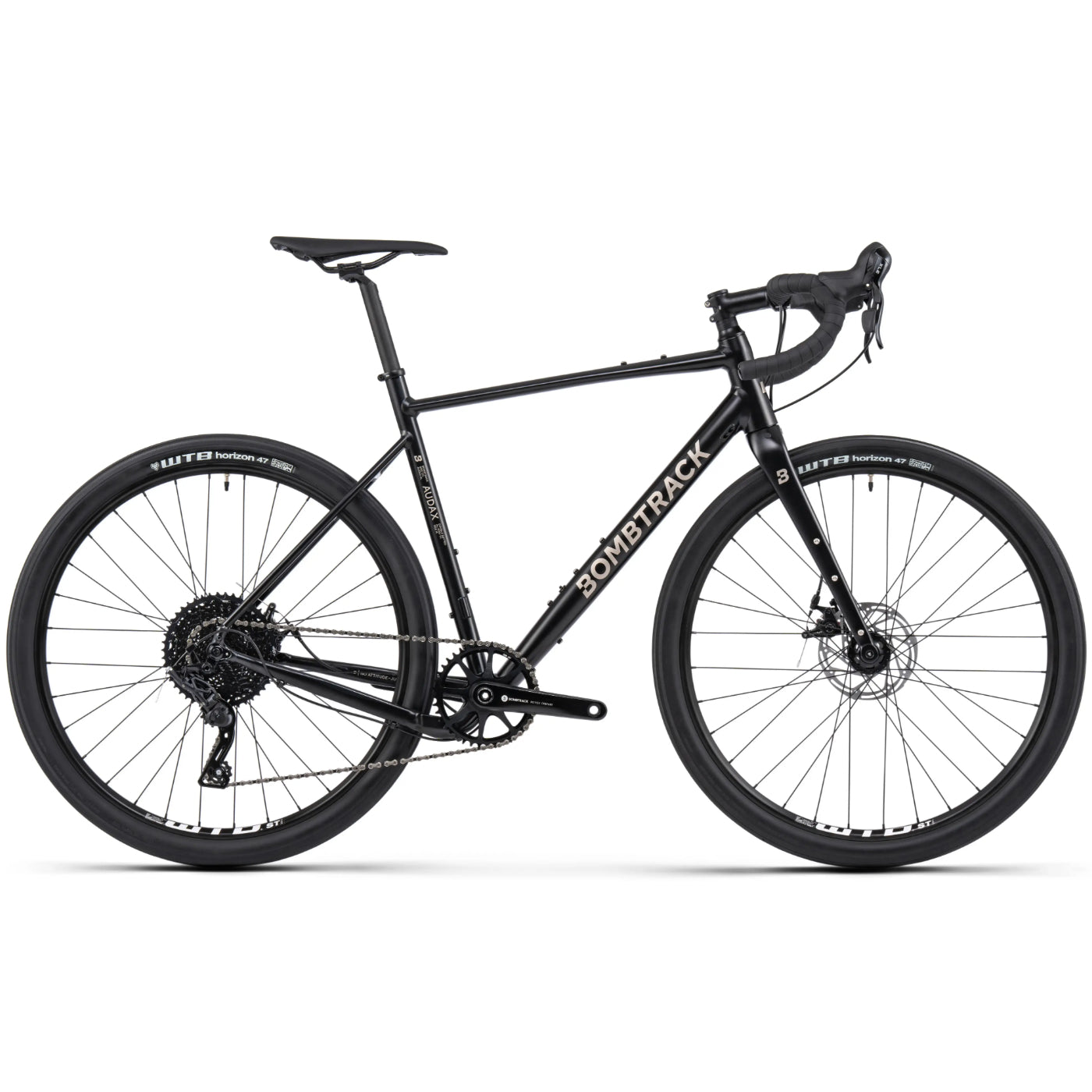

The Audax AL is our lightweight aluminum Audax bike with a hydroformed, double-butted frame and a full carbon fork. We have optimized the butting profiles to reduce weight, ovalized the top tube, and lowered the seat stays to increase compliance, allowing you to ride longer. The frame and fork feature fender mounts and a variety of attachment points to be quick and light on the go. The 11-speed drivetrain from Microshift with a 40-tooth chainring, an 11-46/8 wide-range cassette, and an XLE clutch on the rear wheel makes hills easy and doesn't rattle on cobblestones, while the WTB Horizon tires (650b x 47 mm) crush uneven surfaces with pleasure. TRP Spyre C brakes ensure safety, and the front fork has a guide for the important dynamo setup when the sun goes down.

Equipment:
Frame: 6061-T6 double butted aluminum, TA, fender mounts, 86.5 mm T47 BB shell
Fork: Full carbon, TA, 1.1/2'' - 1.1/8'', with fender / cage mounts, internal hub dynamo cable routing
Crank: Bombtrack Lyer forged aluminum crank, direct mount interface (Sram Compatible), 30 mm spindle, 165 mm (XS)
Crank: Bombtrack Lyer forged aluminum crank, direct mount interface (Sram Compatible), 30 mm spindle, 170 mm (S/M)
Crank: Bombtrack Lyer forged aluminum crank, direct mount interface (Sram Compatible), 30 mm spindle, 175 mm (L/XL)
Chainring: CNC machined aluminum, narrow-wide, 40 T
Bottom Bracket: Bombtrack T47 internal sealed BB for 30 mm spindle
Chain: KMC X10 chain, 1/2'' x 11/128'', 114L
Cassette: Microshift CS-HG113 11-speed, 11 - 46 T
Rear Derailleur: Microshift RD-M6655, clutch, medium cage
Shifters: Microshift SB-M110 Dual Control Lever 1 x 11
Brakes: TRP Spyre C flat mount mechanical disc brakes
Brake Rotors: TRP 160 mm rotors
Brake Levers: Microshift Advent X SB-M100 dual Control lever mechanical
Front Hub: Bombtrack Arc sealed hub, 6-bolt disc
Rear Hub: Bombtrack Arc sealed hub, 11-speed, 6-bolt disc
Thru Axle: 12 x 100 mm / 12 x 142 mm
Front Rim: WTB ST i21 double wall, TCS 2.0, 32h
Rear Rim: WTB ST i21 double wall, TCS 2.0, 32h
Front Tire: WTB Horizon 650B x 47C
Rear Tire: WTB Horizon 650B x 47C
Headset: Sealed integrated aheadset, 1.1/2'' - 1.1/8''
Stem: Bombtrack Roam forged aluminum stem, -7°
Handlebar: Bombtrack CX-10 drop bar, 31.8 mm, 10° flare
Grips: Bombtrack Command bar tape
Seat Clamp: Bombtrack Origin 31.8 mm
Seat Post:  Bombtrack Beech 27.2 mm x 400 mm
Saddle: Seido Comp saddle
Weight: 10.4 kg (M)
max. Rider Weight: 120 kg incl. luggage
max. Tire Width Fork: 650B x 47C / 700C x 35C
max. Tire Width Frame: 650B x 50C / 700C x 35C

* Specifications may vary in details in exceptional cases, depending on the manufacturer.
