Description
drive pinion gear Kit, Pinion Gear (MK3/4) – Swerve Drive SpecialtiesThis kit contains the components specific to the type of motor used with the MK4 Swerve Module. Example: Selecting the NEO option will enable you to convert a MK4 swerve module originally configured for Falcon 500 Motors to subsequently work with NEO Motors. Please note: If you are converting to a Kraken X60 setup, you will also need the Kraken specific Motor Riser Kit. The NEO kit works for the NEO and NEO Vortex motors with the 8mm keyed shaft. The
This kit contains the components specific to the type of motor used with the MK4 Swerve Module. Example: Selecting the NEO option will enable you to convert a MK4 swerve module originally configured for Falcon 500 Motors to subsequently work with NEO Motors. Please note:
- If you are converting to a Kraken X60 setup, you will also need the Kraken-specific Motor Riser Kit.
- The NEO kit works for the NEO and NEO Vortex motors with the 8mm keyed shaft.
- The Falcon kit works for the NEO Vortex motor with the Falcon spline shaft, but the shaft spacers are not included (they are supplied with the Falcon motors).
If you are ordering this kit for a MK3 Swerve Module:
- Select the L1-L2-L3 gear ratio option for the Standard ratio of the MK3
- Select the L4 gear ratio option for the Fast ratio of the MK3

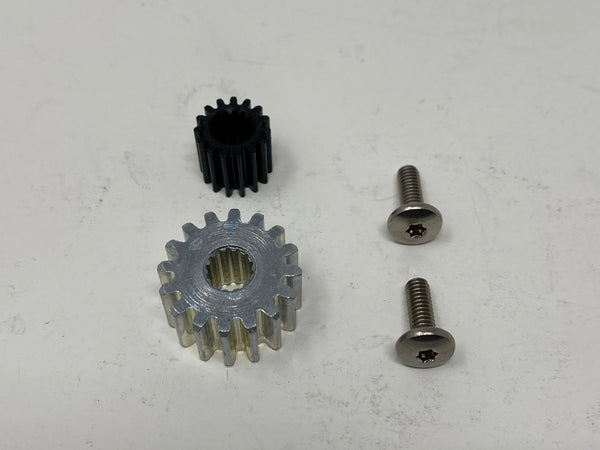

Falcon 500 Kit
- Gear, 20DP, Falcon Spline Bore
- Drive Pinion Gear
- MK3 Swerve Module with Standard ratio: 14T
- MK3 Swerve Module with Fast ratio: 16T
- MK4 Swerve Module with L1, L2, or L3 ratio: 14T
- MK4 Swerve Module with L4 ratio: 16T
- Quantity: 1
- Gear, 32DP, 15T, Falcon Spline Bore
- Steering Pinion Gear
- Quantity: 1
- Screw, 8-32 X 1/2 Torx Button
- Secures the Gears and Spacers to the Motor Shafts
- Quantity: 2
Kraken X60 Kit
- Gear, 20DP, SplineXS Bore
- Drive Pinion Gear
- MK3 Swerve Module with Standard ratio: 14T
- MK3 Swerve Module with Fast ratio: 16T
- MK4 Swerve Module with L1, L2, or L3 ratio: 14T
- MK4 Swerve Module with L4 ratio: 16T
- Quantity: 1
- Gear, 32DP, 15T, SplineXS Bore
- Steering Pinion Gear
- Quantity: 1
- Screw, 10-32 X 1/2 Button
- Secures the Gears and Spacers to the Motor Shafts
- Quantity: 2
-
Spacer, 0.315 x 0.438 x 0.125
- Goes above the Drive Pinion Gear on the Motor Shaft
- Goes above the Steering Pinion Gear on the Motor Shaft
- Quantity: 2
-
Spacer, 0.315 x 0.438 x 0.375
- Goes above the Drive Pinion Gear on the Motor Shaft
- Goes above the Steering Pinion Gear on the Motor Shaft
- Quantity: 2
NEO Kit (also works for NEO Vortex with 8mm keyed shaft)
- Gear, 20DP, 8mm Bore
- Drive Pinion Gear
- MK3 Swerve Module with Standard ratio: 14T
- MK3 Swerve Module with Fast ratio: 16T
- MK4 Swerve Module with L1, L2, or L3 ratio: 14T
- MK4 Swerve Module with L4 ratio: 16T
- Quantity: 1
- Gear, 32DP, 15T, 8mm Bore
- Steering Pinion Gear
- Quantity: 1
- Key, Machine, 2mm x 2mm x 12mm
- For the Drive Pinion Gear
- Quantity: 1
- Ring, Retaining, External, Push-On, 8mm
- Retains the Drive Pinion Gear on the Motor Shaft
- Quantity: 1
- Spacer, 0.315 x 0.438 x 0.188
- Goes above the Drive Pinion Gear on the Motor Shaft
- Quantity: 1
