Description
reverse gear Reverse gearbox + Torque converter - Reverse gear, Torque converter | Helmetkarts Australia Ltd PtyAbout this product This Reverse Gearbox with Torque Converter is suitable for 3 4" or 1" shaft applications. It is designed for go karts, utility vehicles, and other applications with engines ranging from 2HP to 13HP. This versatile gearbox allows the selection of three gears: Forward, Reverse, and Neutral, making it an essential component for a wide variety of vehicles. Specifications Specification Detail Horsepower 2HP 13HP RPM 2300RPM Shaft Size 5
About this product
This Reverse Gearbox with Torque Converter is suitable for 3/4" or 1" shaft applications. It is designed for go-karts, utility vehicles, and other applications with engines ranging from 2HP to 13HP. This versatile gearbox allows the selection of three gears: Forward, Reverse, and Neutral, making it an essential component for a wide variety of vehicles.
Specifications
| Specification | Detail |
|---|---|
| Horsepower | 2HP - 13HP |
| RPM | 2300RPM |
| Shaft Size | 5/8" (15.88mm) with 3/16" (4.76mm) keyway |
| Chain Compatibility | Suitable for 40/41/420 chains |
| Sprocket | 10T Sprocket |
| Forward Ratio | 1:1.3 |
| Reverse Ratio | 1:2.6 |

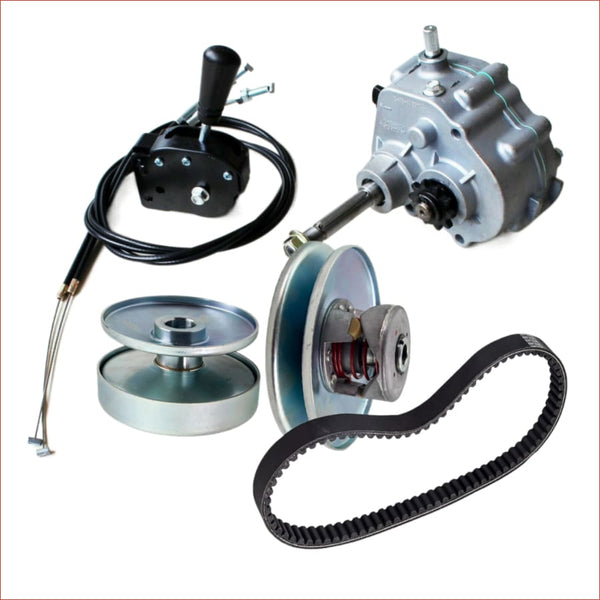

Kit Includes
- Forward / Reverse Gearbox
- Mounting Plates
- Shifter Assembly
- Shifter Disc
- Shifter cable (x2)
- #40/41/420 Sprocket included
- Clutch to suit (3/4" / 1" shafts)
- Belt
Features & Benefits
- Compatible with multiple shaft sizes (3/4" or 1").
- Supports a wide range of engines from 2HP to 13HP.
- Offers three gear options: Forward, Reverse, and Neutral.
- Includes complete installation kit with belts and clutches.
- High compatibility with chains and sprocket sizes.
