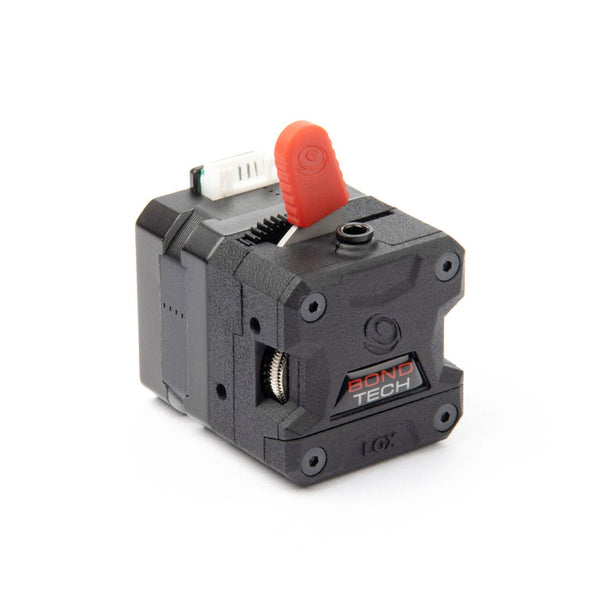

The Bondtech LGX™ Large Gears eXtruder is the first of our filament feeders using Bondtech’s new Dual Drive Technology based on larger drive gears.

7 new features on a Bondtech eXtruder:

• Larger drive wheels, for increased filament grip;
• Filament pre-tension lever, for repeated results;
• Multi-function interface socket, for tool or application quick swap;
• Drive wheels’ maintenance windows, for easy cleaning;
• Compact, light & symmetric design, for increased performance and compatibility;
• Multiple mounting hole patterns, for easy and flexible setup;
• A small step for a greener Future, craft boxes without bleaching & no coating.

Each LGX extruder is supplied with:

• 1x LGX™ feeder;
• 1x Custom LDO Nema17 25mm pancake stepper motor
  (with PH-06AWJ connector);
• 1x Bowden Interface Plug (with threaded metal push-fit);
• 1x Direct Drive Interface Plug (for Slice Engineering hotends);
• 1x 2mm Hex Key (recommended tool);
• 1x Product Line Information Brochure;
• 1x Powered By Bondtech sticker.

Now also shipping with additional accessories:

• 3x M3x30 mm Low Head screws;
• 4x M3x18 mm Stud with 5mm Hex with M3x4 thread;
• 30mm PTFE tube to use in the Direct Drive Interface Plug.

This extruder only supports 1.75 mm size filament.

3D Printed Housing using PA12

The housing parts are professionally printed with nylon for maximum strength and precision and higher temperature resistance.
