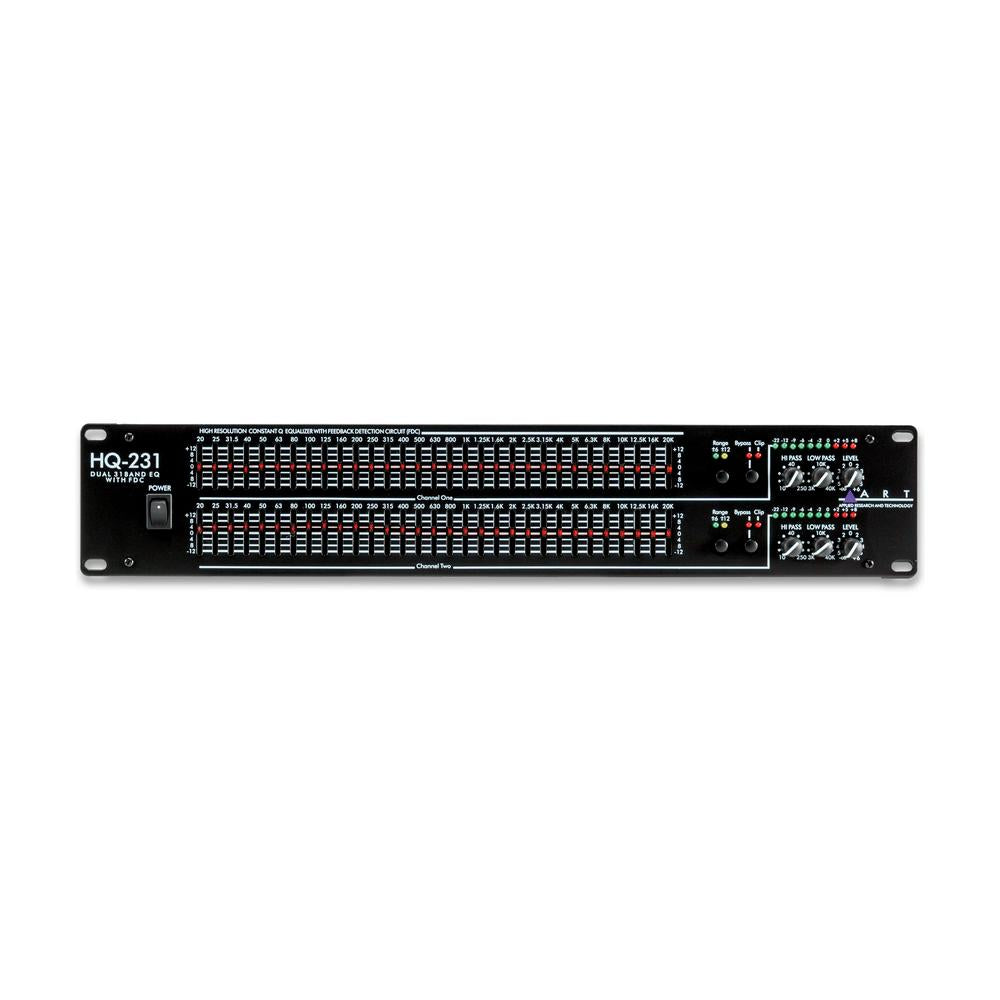

hq gear ART HQ231 Two Channel 31 Band Graphic Equalizer – Gear Hero

hq gear ART HQ231 Two Channel 31 Band Graphic Equalizer – Gear HeroThe HQ231 Dual 31 band Graphic EQ is perfect for any live sound application where there is a high feedback potential including monitor mixes, side fill cabinets or high powered front of house mixes situations. The HQ231 features ARTs proprietary FDC Feedback Detection Circuit, with constant Q circuitry capable of delivering a 3 center frequency accuracy. Professional features like LED level metering, selectable 6dB or 12dB slider range, active

The HQ231 Dual 31-band Graphic EQ is perfect for any live sound application where there is a high feedback potential including monitor mixes, side-fill cabinets or high powered front-of-house mixes situations. The HQ231 features ARTs proprietary FDC Feedback Detection Circuit, with constant Q circuitry capable of delivering a 3 center frequency accuracy. Professional features like LED level metering, selectable 6dB or 12dB slider range, active balanced and unbalanced input output connectors, RFI filters, independent variable Hi Pass low cut and Low Pass high cut filters, variable input level control, passive bypass switch, clip level indicator, ground lift switch, and selectable line voltage switch make it ideal for any professional application or touring system. FDC Feedback Detection Circuit - FDC Feedback Detection Circuitry designed and developed by ART Engineering instantly illuminates an LED on the corresponding EQ band fader with the greatest sustained signal. The LED indicators can immediately show which band corresponds to the feedback frequency, allowing the sound engineer to reduce gain in that band to quickly kill the feedback while having a minimal impact on the sound of the live program material. The FDC also acts as a simple spectrum viewer while the concert proceeds showing where the hot areas are. During system setup and sound check, the FDC may be used to help identify room and sound system resonances. By increasing the gain until feedback, it is easy to identify those frequencies that are likely to be problems. Reducing the gain in these bands helps tune the sound system, and, remove problem areas before the show begins. It also helps increase the gain margin before feedback.
