Description
gears 4 length Mitutoyo Micrometer, Disc, Non-Rotating, 3-4" MPN:369-353-30Mitutoyo Disc Micrometer with Non Rotating Spindle & SPC Output The Disk Micrometer is designed to easily measure root tangent length of spur gears and herical gears. Non rotating spindle eliminates torque on workpiece. Features include 3 4" 75 100mm Measuring Range 0. 00005" 0. 001mm Resolution Diameter of measuring disk: 20mm . 787 0. 7mm . 028 edge thickness to enter narrow recesses. With Ratchet Stop for constant force. With SPC output. Supplied

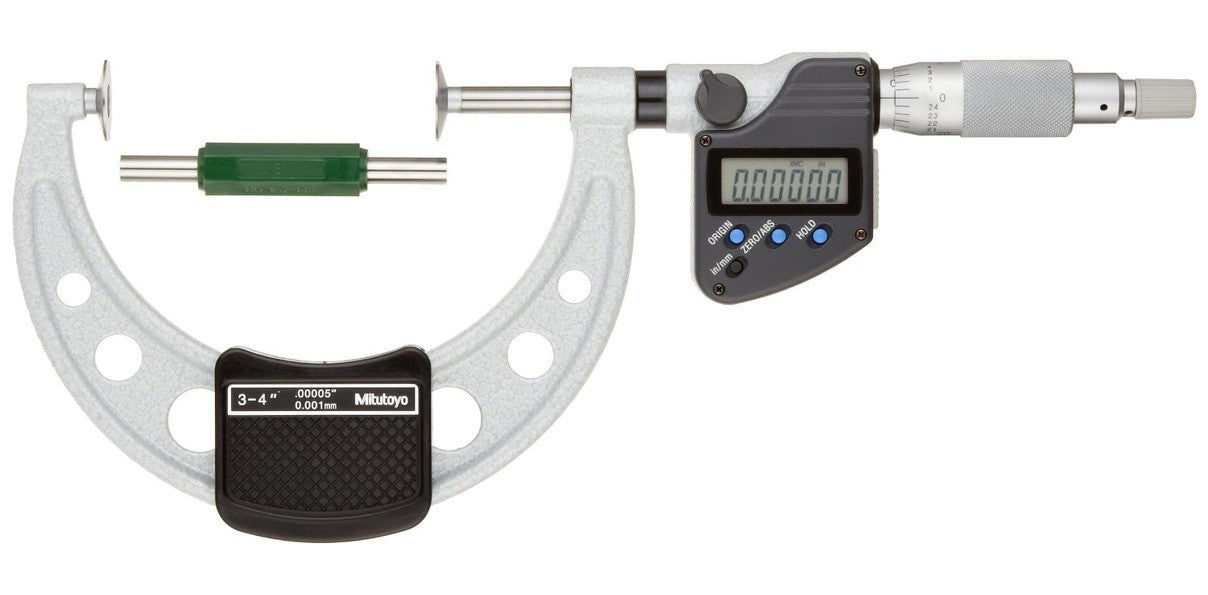

Mitutoyo Disc Micrometer with Non-Rotating Spindle & SPC Output
The Disk Micrometer is designed to easily measure root tangent length of spur gears and herical gears. Non-rotating spindle eliminates torque on workpiece.
Features include...
- 3-4" / 75-100mm Measuring Range
- 0.00005" / 0.001mm Resolution
- Diameter of measuring disk: 20mm / .787
- 0.7mm / .028 edge thickness to enter narrow recesses.
- With Ratchet Stop for constant force.
- With SPC output.
- Supplied in fitted plastic case.
Functions include...
- Origin-set
- Zero-setting
- Data hold
- Data output
- inch/mm conversion
- Alarm: Low voltage
