Description

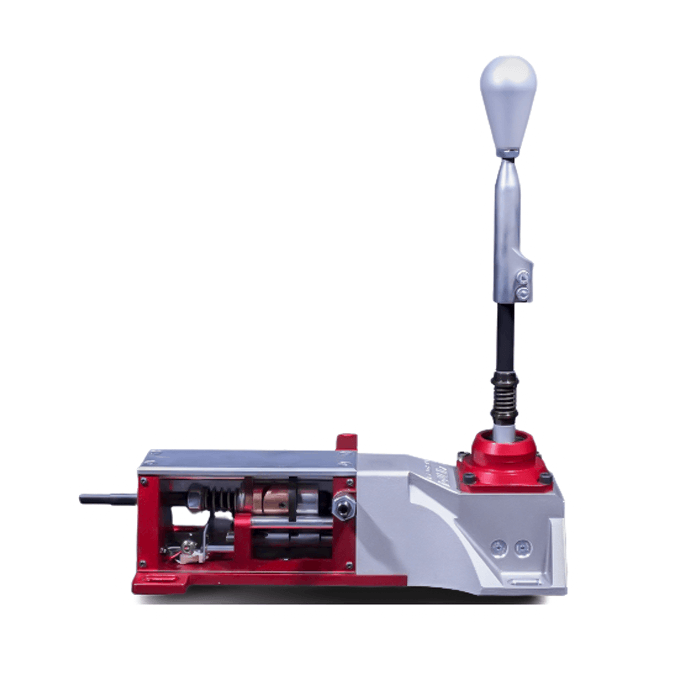

sim racing gear shifter Pro-Sim H Pattern Simulator ShifterDescription With the help of world renowned Quaife Engineering, Pro Sim has created the best H pattern shifter available for the simulator. The simulator market was crying out for an H pattern shifter that actually felt like driving a real car and not just pressing a few buttons on the end of a lever. The Pro Sim H pattern is like the Sequential Pro Sim Shifter and is an extremely robust design that you can really use hard without fear of breaking
Description
With the help of world-renowned Quaife Engineering, Pro-Sim has created the best H-pattern shifter available for the simulator. The simulator market was crying out for an H-pattern shifter that actually felt like driving a real car and not just pressing a few buttons on the end of a lever. The Pro-Sim H pattern is like the Sequential Pro-Sim Shifter and is an extremely robust design that you can really use hard without fear of breaking anything. The design is an 8-speed shifter with 6 forward gears and two extra gears for reverse that are located beyond the reverse interlock on the gear lever accessed by pushing the lever down and across to the left, which gives you the option of reverse forward or backwards.
Designed and Manufactured in the UK
The feeling is exactly the same as the real car, and when you change gears and you can also see the selector rods engaging behind the Perspex cover exactly like your real gearbox would. The design and concept are taken directly from a production Quaife H pattern gearbox. On our shifter, the feeling comes from the selector rods and the centralisation device used on most gearboxes rather than relying on a gate plate at the top, which is what all other shifters on the market currently do.
The shifter itself is fully adjustable, with the force of both centring and going through the gate easily adjustable by the user. The pivot point of the gear lever is also adjustable meaning without changing the length of the lever you can adjust the through between gears. The shifter has a short gear lever as standard which is something similar to one found on a Caterham and by the use of our shaft extension, you have an additional 150mm possible in height and this is adjustable by 70mm to any height required.
The shifter will have a USB B socket on the back to be connected directly to the PC as a stand-alone device, we will supply the shifter with a high-quality 2m USB A to B cable.
Motion Ratio adjustment of the gear lever:
If you adjust the motion ratio following our video guide here https://youtu.be/XOOHsE3gGgI
All shifters leave our factory with the bearing in the upper position which gives the shortest travel on the lever. With the bearing in the lower position, the same length lever will travel further.
The photo below shows the difference you can expect it to make, this photo is without the shaft extension and shows the 6th gear engaged.
See a review of the Shifter:
Please note this shifter includes the extension shaft adapter.
