Description

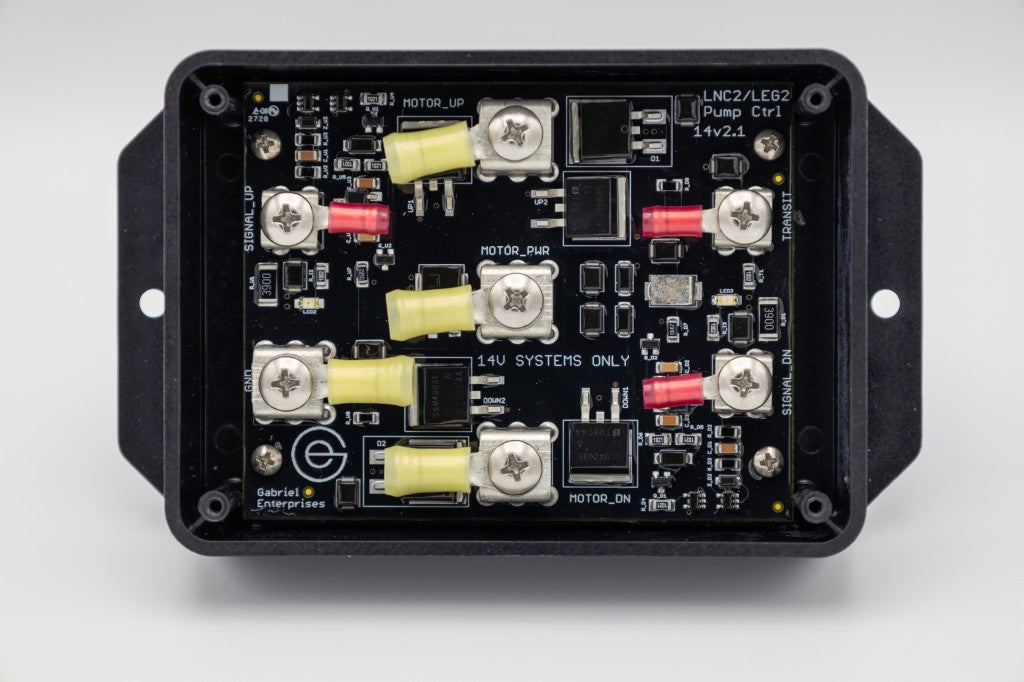

landing gear controller Lancair 235/320/360/Legacy Landing Gear Controller – Gabriel EnterprisesA complete, reliable, drop in replacement for the landing gear hydraulic pump circuitry. The Gear Controller replaces two intermittent duty starter solenoids, flyback diodes, Gear In Transit diodes, and all associated interconnects using the interfaces already present in the stock hydraulic system. Features: Solid state. No mechanical moving parts, no intermittent duty coil to accidentally burn up Low switching current (200 mA). Compatible with either
A complete, reliable, drop-in replacement for the landing gear hydraulic pump circuitry.
The Gear Controller replaces two intermittent duty starter solenoids, flyback diodes, Gear-In-Transit diodes, and all associated interconnects using the interfaces already present in the stock hydraulic system.
Features:
- Solid state. No mechanical moving parts, no intermittent duty coil to accidentally burn up
- Low switching current (200 mA). Compatible with either stock or aftermarket solid-state pressure switches
-
Graceful startup and shutdown of the hydraulic pump.
- Inputs have a 20 ms delay, which eliminates start-stop-start from bouncing mechanical switch inputs;
- Motor outputs have robust flyback diode protection, which snubs voltage spikes on motor shutdown
- Inputs have a 20 ms delay, which eliminates start-stop-start from bouncing mechanical switch inputs;
- Lightweight. The Gear Controller is half the weight of a single solenoid and has a much smaller footprint
-
Complete transit light solution. Wire your transit light straight from the board--overcurrent protection built in (automatically resetting, 500 mA max)
- EMI protection. The circuit has high resistance to radiated and conducted emissions
Available in 14V and 28V versions; please make sure you've selected the correct voltage for your platform!
