Frame: Specialized S-Works Crux

Color: Satin Brushed Liquid Silver / Gloss Black / Smoke Marble / Gold Diamond Dust.

Tire Clearance: 700c x 47mm, or 650b x 2.1"

Brake type: Flat-Mount disc brake.

Size: 52cm. 539mm Effective Top Tube. Stack - 547mm. Reach - 382mm. Head tube 115mm. Recommend buyer confirm and research full geometry online.

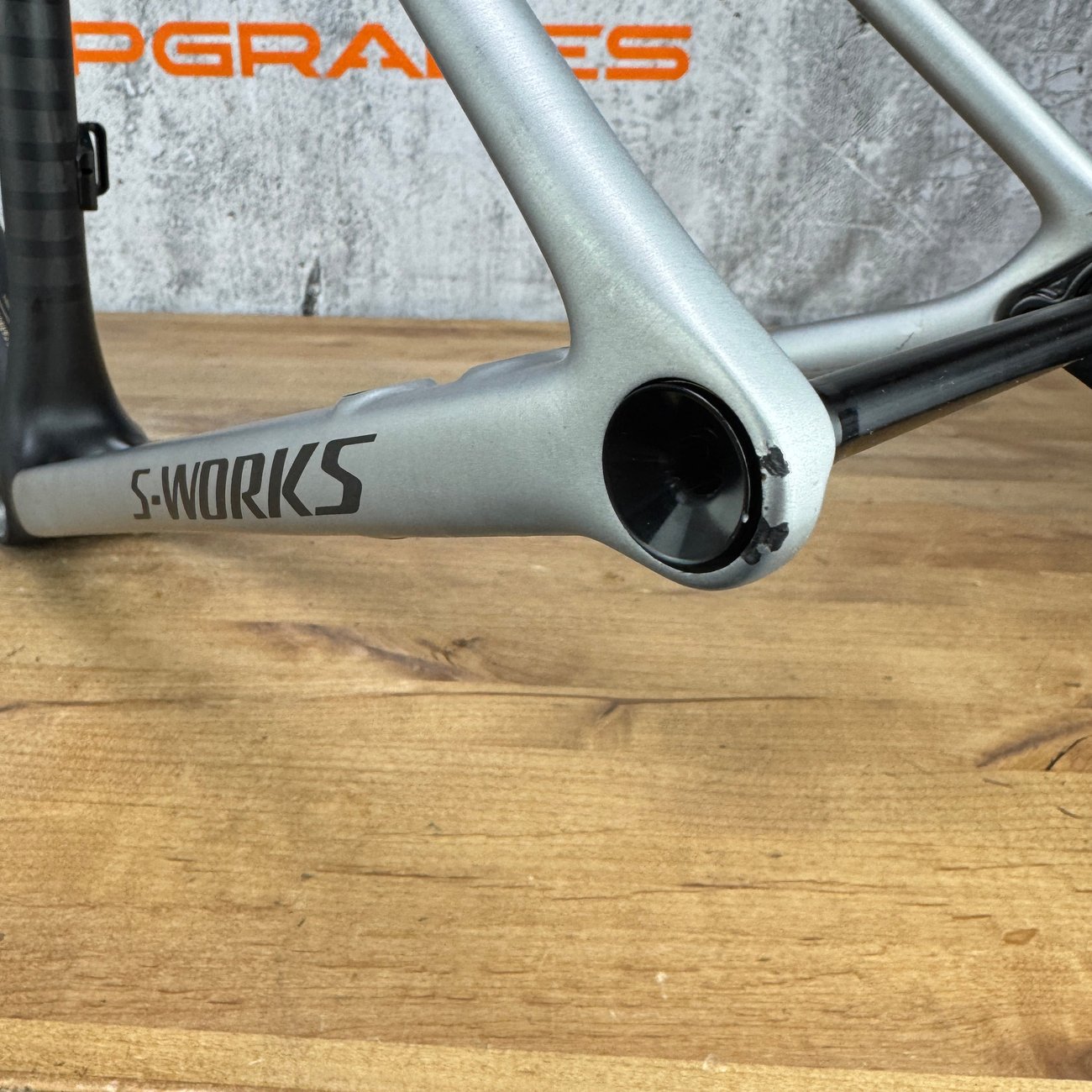

Condition: This frame had a repair done on the drive side chainstay shown in pic #6. The repair was done by Broken Carbon out of Colorado, which has a 5 year transferrable warranty. A picture of the crack before the repair is shown in the last picture. The cosmetic imperfections to highlight include: Some scratches on the head tube shown in pic #7, and some scratches on the chainstays shown in pics #9 & 10. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.

Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups.

Bottom bracket: English threaded bottom bracket shell type. No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

Steerer length: 70mm of steerer above the top tube. 20mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

 Seatpost: 27.2mm diameter. No seatpost included.

Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.

Weight: 1318 grams as pictured with headset, thru axles, frame hardware, etc.

What's included: Frame, fork, headset, rear derailleur hanger

At CyclingUpgrades, we fulfill all orders next business day or sooner. Generally we are able to fulfill orders placed by 12pm MT on the same day, however it is not guaranteed. We ship all items via USPS except for frames/wheels which ship via UPS or Fedex. Please check our other listings for additional cycling upgrades and thank you for shopping our store!
