echo machine pedal Strymon Volante Magnetic Echo Machine Pedal

echo machine pedal Strymon Volante Magnetic Echo Machine PedalProduce Sounds From The Expanse With The Strymon Volante Magnetic Echo Machine Pedal Create instant retrofuture atmosphere with evocative vintage delay tones. Activate your imagination with evolving ambient echoes and warm, organic feedback with just the right amount of grit. Sculpt your soundscape in real time as Volante becomes an extension and expansion of your musical instrument. Infuse your pedalboard with stunning vintage vibes that resonate and

Produce Sounds From The Expanse With The Strymon Volante Magnetic Echo Machine Pedal

Create instant retrofuture atmosphere with evocative vintage delay tones. Activate your imagination with evolving ambient echoes and warm, organic feedback with just the right amount of grit. Sculpt your soundscape in real time as Volante becomes an extension and expansion of your musical instrument. Infuse your pedalboard with stunning vintage vibes that resonate and inspire.

Delays for Days

Three Magnetic Delay Types, Reverb, Sound on Sound, and More. Delivering truly exceptional sound quality and intuitive playability, Volante is designed to radically enhance the sonic expressiveness of your pedalboard. Featuring magnetic drum echo, tape echo, and reel-to-reel studio echo, Volante is a stereo multi-head delay that also offers a Sound on Sound mode and a vintage spring reverb algorithm. Volante's powerful sound-sculpting controls provide limitless sonic possibilities.

Vintage Vibe

To capture the nuance and complexity of classic tape and drum echo machines, every last magnetic delay system attribute was relentlessly studied and faithfully recreated. From the sought-after natural saturation and soft clipping of magnetic media when driven hard, to hands-on real-time controls for mechanics, wear, head-spacing, and low cut, Volante instantly adds tons of vibe to your sound.

Multi-Head Maven

Volante provides the full experience and sonic attributes of iconic multi-head echo machines. At the center of Volante's control surface are four delay playback heads with individual feedback, panning, and level controls-- delivering unlimited creative options right at your fingertips. All of this range allows the creation of complex rhythmic patterns as well as reverb-like atmospheric textures.

SPECIFICATIONS

Sound Design

• Multi-head magnetic media delay machine providing four playback heads with individual feedback, panning, and level controls
• Processor-intense algorithms deliver meticulously nuanced recreations of vintage magnetic echo systems (drum echo, tape echo, studio reel-to-reel echo)
• Dedicated control over echo machine tone and media: Low Cut, Mechanics, Wear
• Input Record Level for clean reproduction to warm, fat saturation
• Independent Spring Reverb
• Sound on Sound looping mode (mono) with reverse, pause, splice, and infinite repeat functions

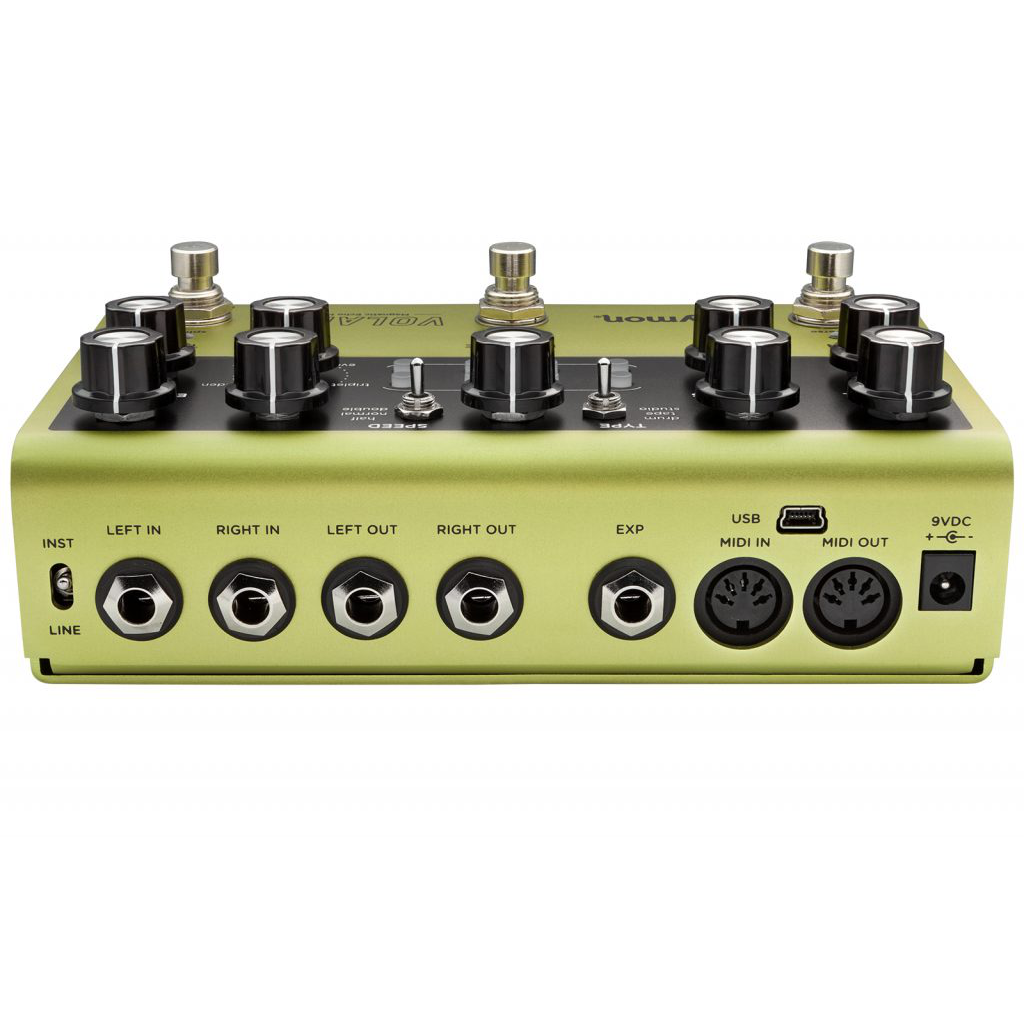

Ins, Outs, and Switches

• High impedance stereo input
• Stereo output
• Input Level switch allows for both instrument and line level signals
• On, Favorite, and Tap Tempo footswitches
• Expression pedal input allows the connection of an expression pedal, external tap pedal, 1/4" to MIDI cable, or MultiSwitch Plus.
• Full featured MIDI in/out supporting MIDI CCs, program changes, and more
• USB jack for controlling MIDI via computer

Audio Quality

• Analog dry path for a zero latency dry signal that is never converted to digital
• Premium JFET analog front end
• Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
• Super high performance SHARC DSP
• 32-bit floating point processing
• 20Hz to 20kHz frequency response
• Audio Input Impedance: 1M Ohm
• Audio Output Impedance: 100 Ohm

More

• True Bypass (electromechanical relay switching) or selectable transparent Analog Buffered Bypass
• Strong and lightweight anodized olive green aluminum chassis
• 9V DC power supply included
• Power requirements: maximum 9 volts DC center-negative, with a minimum of 300mA of current
• Dimensions: 4.5" deep x 7" wide x 1.75" tall or 114.3 mm deep x 177.3 mm wide x 44.5 mm tall
