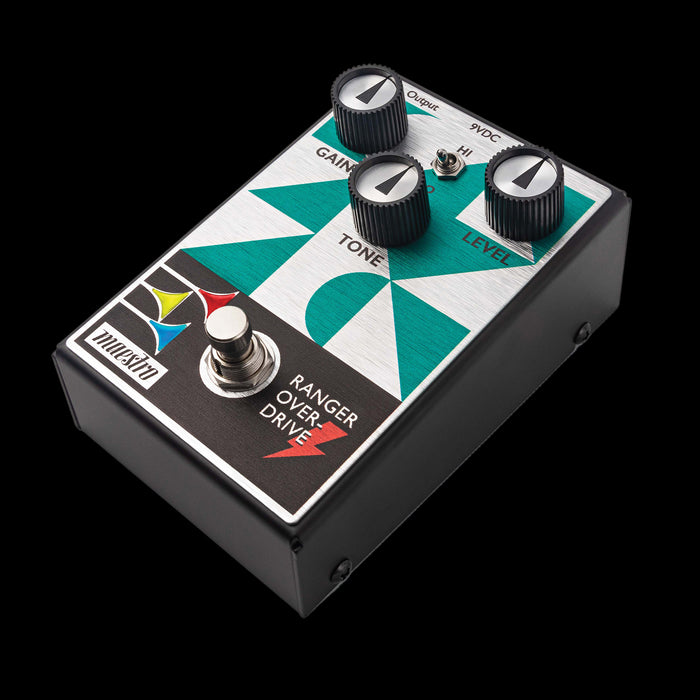

maestro guitar pedal Maestro Ranger Overdrive Guitar Effect Pedal — Truetone Music

maestro guitar pedal Maestro Ranger Overdrive Guitar Effect Pedal — Truetone MusicInspired by the overdriven tones of some of the worlds most cherished vintage tube amps, the Ranger is a modern, all analog overdrive pedal featuring a Mode toggle switch that provides two different tonalities; a warm, expressive, amp like overdrive and a second tonality thats slightly cleaner and exceptionally touch sensitive; it blends in some of the clean signal and is a great choice for use as an alwayson effect that can be controlled with your

Inspired by the overdriven tones of some of the world’s most cherished vintage tube amps, the Ranger is a modern, all-analog overdrive pedal featuring a Mode toggle switch that provides two different tonalities; a warm, expressive, amp-like overdrive and a second tonality that’s slightly cleaner and exceptionally touch-sensitive; it blends in some of the clean signal and is a great choice for use as an “alwayson” effect that can be controlled with your pick attack and your guitar’s volume control. The Ranger’s classic 3-knob layout provides intuitive adjustment of Gain (amount of overdrive), Tone, and output Level, with plenty of volume on tap to go well beyond unity gain.

You can easily use the Ranger Overdrive as a boost to hit the input of your tube amp harder for even more grit and dirt. The true bypass footswitch triggers the LED lights in the bugles in the Maestro logo when it’s on, so you’ll always know when the effect is active.

Specs

Controls: Gain, Tone, Level
Switches: True Bypass footswitch, Hi/Lo Mode toggle switch
LED Indicators: Red, yellow, and blue bugles in the Maestro logo
illuminate when the pedal is active
Signal Processing: All-Analog
Power Requirements: 9V battery or regulated 9-12*VDC power supply
(5.5 x 2.1 mm plug, wired center-negative) *Running the pedal at 12V
provides increased headroom
Current Draw: 30.4 mA
Power On Switch: Incorporated into the input jack. Unplug the input when
not in use to prevent battery drain. Remove the battery when the pedal is
going to be stored for long periods to prevent leakage and damage.
Input Impedance: 1 Megohm
Output Impedance: 1 kOhms
Switching: True Bypass
Dimensions (D x W x H): 5.04” x 3.45” x 2.50” (128.0 mm x 87.6 mm x 63.5 mm)
Weight: Net 1.23 lb. (557.9 gm.), Gross 1.61 lb. (730.3 gm.
SKU: MOCROP
